Frame: Magnesium alloy
Rims: Magnesium, black powdered
Tires: 20“x 2.125
Shift lever: Shimano 6- gear SIS derailleur (44T / 14T-28T )
Brakes (front/ rear): Tektro disc brakes, mechanical, 160 mm
Headset: Semi integrated
Max. payload: 100 kg (incl. driver)
DRIVE
Engine: Rear hub motor Xiongda XD-20GS, DC 36 V/ 250 W, 50 Nm, IP54, brushless, maintenance free
Battery: 36 V/ 10,5 Ah LG- Lithium- Ion battery w. integrated BMS
Controller: 36 V/ 15 A DC
Sensors: Cadence- & speed sensor
Driving modes: 3 level PAS/ PAS off
Bike computer: LC- Display wit 3 function keys, backlight. Functions: Speed, ODO, TRIP, TIME, PAS LEVEL, battery, lights, auto- power- off, error display
Charger: Switching power supply (AC 100 – 240 Volt), 42 V, 2 ACharging time: about 4- 6 h
Range: Up to 70 km/ 45 miles (1)
Max. speed (PAS): max. 25 km/h
LIGHTING
Lamps/ reflectors: LED- headlight with reflector, EPAC powered Rechargeable USB LED- battery rear light at saddle stem Z- reflector, Pedals w. integrated reflectors
Tires with circumferential reflector stripes
FURTHER CONFIGURATION
Mudguards: Yes, included accessories
Kickstand: Yes, left sided at rear axle’
Pedals: Foldable

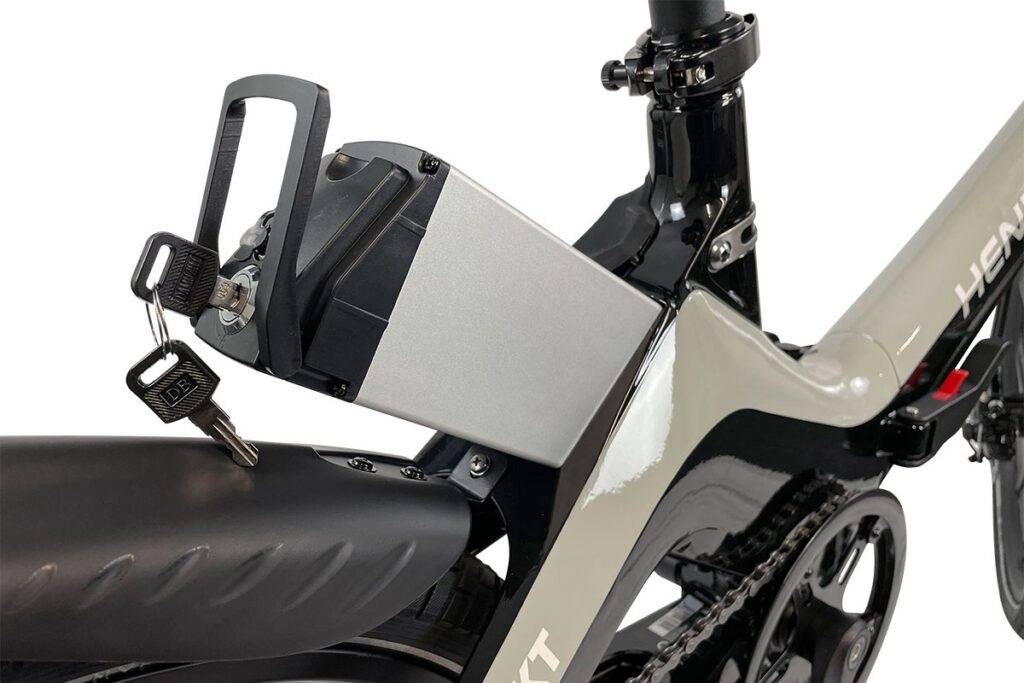

Battery removable: Yes
Battery lockable: Yes
Charging if installed/ removed: Yes / Yes
Battery indicator: Yes, computer display
Additional battery: Optional
Chain protection: Yes, integrated
Luggage carrier: No
Bell: Yes, integrated on brake lever
Sprung seat post: No
Suspension fork: No
Carry bag: Optional
Handlebar bag: Optional
SIZE / WEIGHT
Size (unfolded): About 1530 x 570 x 1080 mm (L x B x H)

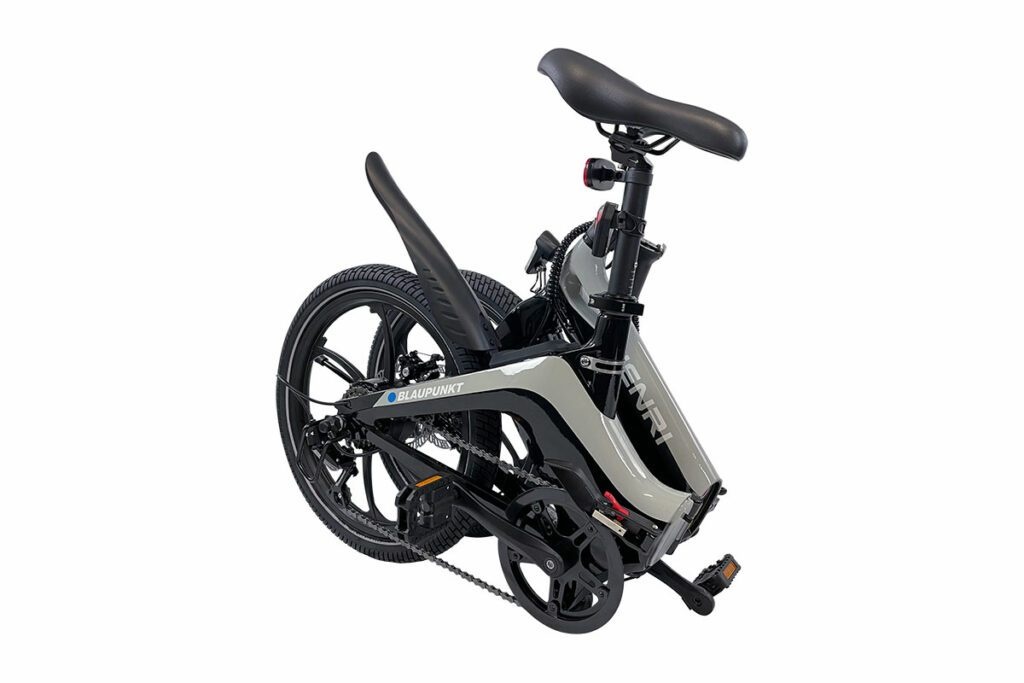

Size (folded): About 850 x 500 x 600 mm (L x B x H)
Wheel size: 20“x 2,125
Color: Agate Grey (RAL 7038)/ black
Certifications: EPAC DIN EN 15194:2017, CE, StVZO, UN38,3, IPX4
*The range depends on the load, driving style and area of use
(2) Subject to modification
